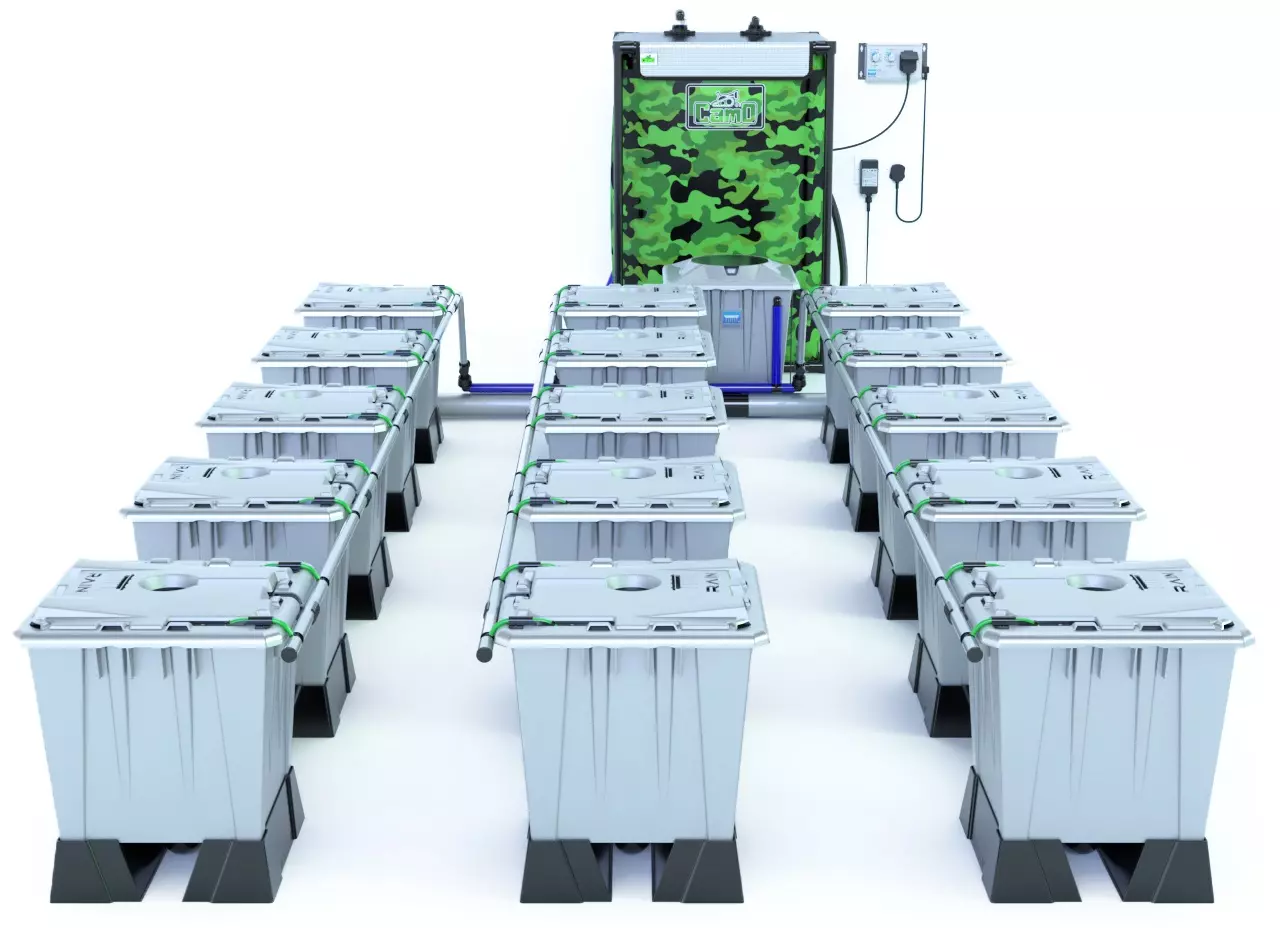

Alien RAIN 15 Pot 15L Pro Silver Series

Product Description

Alien RAIN 15 Pot 15L Pro Silver Series is a supremely efficient automated watering system from the ALIEN range, that simulates rain. This system is entirely compatible with a range of substrates including coco, soil and more. Alien RAIN 15 Pot 15L Pro Silver Series can also be used as a recirculating or run-to-waste system.

Key Features

• Integrated filtration
• RAIN™ Brain
• Drainage bases
• Copper drain covers
• CAMO® Pots
• Recirculate or RTW
• Dual-Flow™️ fittings
• 50mm silver pipe

How It Works

Alien RAIN 15 Pot 15L Pro Silver Series Works by mimicking rain in its delivery of water and nutrient solution. This assures there is an even delivery of it and enables support of any growing medium. The heat-reflective silver polymer of the pots means the temperatures can remain stable, top surface algae is eliminated and water and nutrients are used efficiently. Alien RAIN 15 Pot 15L Pro Silver Series can flush residual salts away and allow the medium to dry evenly. This unit achieves all this while operating quietly.

How To Use And Assemble Alien RAIN 15 Pot 15L Pro Silver Series

• Lay the pots down on their side. Fit the 50mm Dual-Flow™ fittings into the holes at the bottom of the pots. The rubber washer must be on the outside. Using the locating slots, slide the collars over the threads then secure the nut with the spanner provided. Tees are used on all pots except for the end of the line where elbows are used.
• Measure the distance between the barbed fittings. Taking note of the maximum pipe lengths, cut and fit the 50mm silver pipe. Use warm water or a heat gun to make the pipe more pliable.
• Place a pair of stands under each pot.
• Fit a tee to the header pot. Refer to the bird’s eye images for 2, 3 and 4 row systems. The 48-pot system is a 6-row system. Connect the header to the pots using 32mm tees & elbows. Locating the header further away from the system is possible with extra fittings available on the website. 50mm Dual-Flow straight & 50mm barbed tee.
• Place a drain cover in the bottom of each pot.
• The copper drain cover will deter the roots from entering the pipework.

(The copper will discolour after a period of time; this is a natural occurrence. We recommend replacing them after 6 months of use to maintain the performance.)

• Push-fit the pot clips into the slots on the side of the pots.
• Push-fit the two lid clips into the rectangle holes in the RAIN™ Lids and place one on top of each pot.
• If you have a 2-row system (4, 6, 8 or 10 pots), the valves with green taps are screwed directly to the header pot. Note: 4 and 6 pot systems may require the valves to be closed slightly to avoid splashing

What It Includes

Feed Pump:

• Model: RAIN™ AR01001
• Maximum Flow: 3500 L/hr
• Power: 200W

Drain Pump:

• Model: JET-STREAM™ Drain
• Maximum flow: 2270 L/hr
• Voltage: 12V DC

Kit:

Specification

• Minimum footprint: 225cm (L) x 115cm (W)

(Pots as close as possible, without tank)

• Maximum footprint: 330cm (L) x 160cm (W)

Recommendations

• Plant Centres: 50-60cm
• Water Tank: 280L
